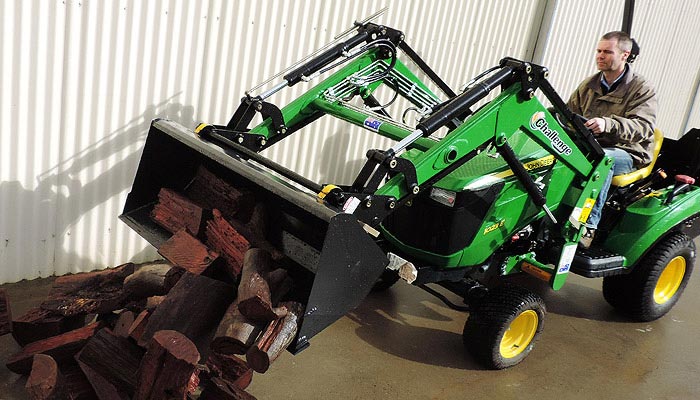

The Challenge 21 Compact series front-end loaders have been specially developed for 21 to 60 horsepower agricultural tractor ranges. Designed for Australian conditions with a choice of general purpose or multipurpose 4in1 bucket designs which enables the operator to move and collect soil, mulch and gravel easily and neatly.
Available Challenge loader kits for Case IH tractors; Case IH DX range, Case IH DXE range, Case IH Farmall B range, Case IH Maxxfarm range.
Available Challenge loader kits for New Holland tractors; New Holland Boomer 1000 range, New Holland Boomer 2000 range, New Holland Boomer 20-50 range, New Holland Boomer 3000 range, New Holland Boomer 4000 range, New Holland Boomer 8N range, New Holland Boomer D range, New Holland T1500 range, New Holland TC range, New Holland TZ range, New Holland Workmaster range.
Available Challenge loader kits for John Deere tractors; John Deere 1000 range, John Deere 2020 range, John Deere 2R range, John Deere 3020 range, John Deere 3E range, John Deere 3R range, John Deere 4000 range, John Deere 4020 range, John Deere 4M range, John Deere 4R range.
There are more tractor ranges available for our Challenge 21 Compact series front-end loader. Contact us to see if we can fit a front-end loader to your tractor model.
The electric 3rd service allows the operator to remotely operate an additional hydraulic circuit on an attachment. This is controlled by the operator from a switch mounted on the joystick.
Hydro ride provides a smoother, cushioned ride by reducing the energy transfer back and forth between the front-end loader and the tractor. The kit installs cleanly and does not restrict the operator’s vision.
1821 | 2421 | 2721 | 2821 | |
---|---|---|---|---|
Tractor horse power (approximate) | 21-28 hp | 26-35 hp | 34-45 hp | 45-60 hp |
(A) Maximum lift height to pivot pin | 1790 mm | 2450 mm | 2703 mm | 2840 mm |
(B) Maximum lift height under level bucket | 1575 mm | 2221 mm | 2475 mm | 2550 mm |
(C) Clearance with bucket dumped (see Note 1) | 1140 mm | 1790 mm | 2048 mm | 2000 mm |
(D) Reach at maximum lift height (see Note 2) | 985 mm | 800 mm | 930 mm | 1060 mm |
(E) Maximum dump angle | 78° | 55° | 56° | 58° |
(F) Reach with bucket on ground (see Note 3) | 1390 mm | 1560 mm | 1615 mm | 1940 mm |
(G) Maximum rollback angle | 49° | 49° | 49° | 49° |
(H) Digging depth (see Note 4) | 80 mm | 120 mm | 120 mm | 150 mm |
(J) Overall height in carry position | 1190 mm | 1275 mm | 1450 mm | 1550 mm |
(K) Maximum rollback angle at max. lift height | 44° | 52° | 52° | 49° |
Lift capacity at pivot pin - ground level | 439 kg | 739 kg | 1062 kg | 1490 kg |
Lift capacity at pivot pin - max. lift height | 323 kg | 497 kg | 731 kg | 1242 kg |
Lift capacity at 500mm from pivot pin - ground level | 309 kg | 537 kg | 757 kg | |
Lift capacity at 800mm from pivot pin - ground level | 1350 kg | |||
Lift capacity at 500mm from pivot pin - 1.5m lift height | 244 kg | 425 kg | 846 kg | |
Lift capacity at 800mm from pivot pin - 1.5m lift height | 1306 kg | |||
Lift capacity at 500mm from pivot pin - max. lift height | 230 kg | 320 kg | 508 kg | |
Lift capacity at 800mm from pivot pin - max. lift height | 900 kg | |||
Bucket rollback force at ground height | 500 kg | 575 kg | 670 kg | 1000 kg |
Tractor pump pressure (depending on tractor model) | 130 bar | 150 bar | 175 bar | 185 bar |
Maximum frame weight | 172 kg | 202 kg | 236 kg | 368 kg |
Maximum front tyre size guide | 580 mm | 580-740 mm | 740-850 mm | 850-900 mm |
[Note 1] Vertical distance from ground line to lowest point of cutting edge when bucket is dumped 45° and loader is fully raised.
[Note 2] Horizontal distance from tip of bucket cutting edge to centre line of tractor front wheels with loader fully-raised and bucket dumped at 45°.
[Note 3] Horizontal distance from tip of bucket cutting edge to centre line of tractor front wheels with bucket level on ground.
[Note 4] Digging depth can vary depending on fitted tractor tyre equipment.
[Disclaimer] Loader specifications may vary with tractor models, tyre sizes and/or hydraulic systems, and assume a hydraulic system capacity of 15.0 Mpa. To correctly ballast the tractor when used with a front-end loader, a three-point linkage counterweight must be fitted. Also refer to the tractor operators manual for weighting and ballasting information.
